RELATED IDEAS

Improve help documentation for Screen units

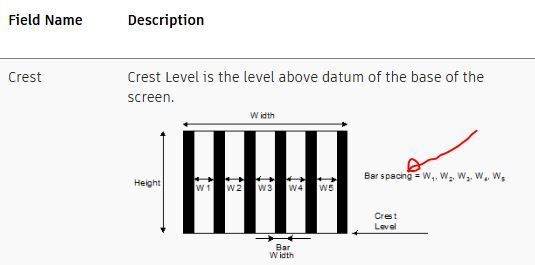

The InfoWorks ICM help file for screen units, contains an old illustration of a bar screen with an annotation to sum gaps between the bars to calculate spacing. This illustration is confusing as the help file for screens was recently changed to specify width as total screen width (including bars), and to specify bar spacing as gap between two bars only, not summing gaps as per illustration.

Please can this illustration be updated to reflect actual requirements, or just removed as its confusing for users.

Thanks

https://help.autodesk.com/view/IWICMS/2026/ENU/?guid=GUID-1D701555-E038-42F8-88DC-D0130B380403

Screen Help.JPG
Screen Help.JPG
Open full size
  • Attach files
  • Admin
    Samer Muhandes
    Oct 11, 2026

    Thank you for the suggestion and thanks to those who voted.

    I agree that the figure is not helpful so I have instructed our technical writer to remove it to avoid confusion. In the future, we will consider an alternative and helpful illustration to add in various places in the help including Screen Units.
